John Deere XUV590i and XUV590i S4 Gator Utility Vehicles (SN. from 010001) Technical Manual (TM143219)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere XUV590i and XUV590i S4 Gator Utility Vehicles (SN. from 010001) Technical Manual (TM143219)

Number: 20014
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Utility Vehicle
  • Series
    Gator
  • Model
    XUV590i
  • Serial Number
    010001-
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair

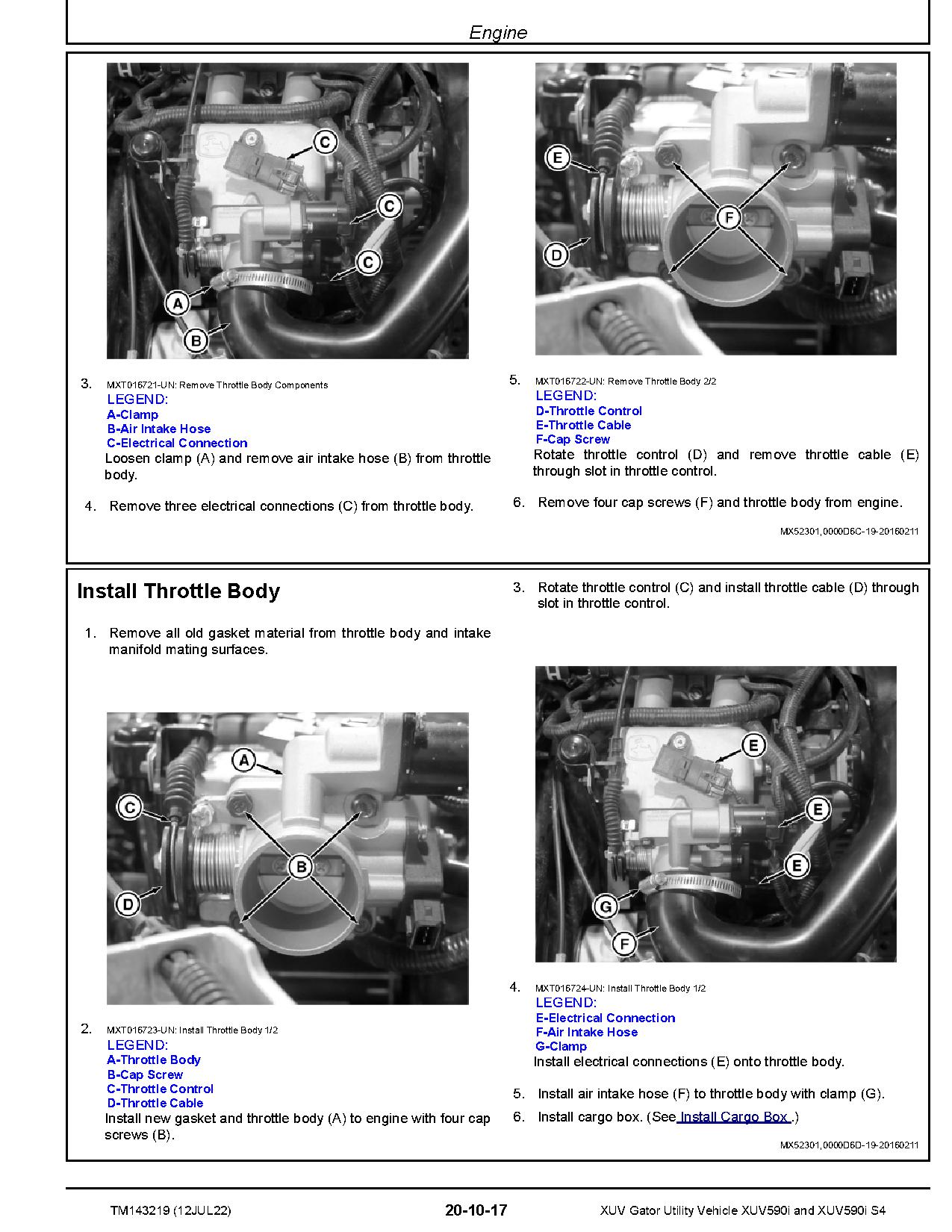

      Engine
   Electrical Repair
      Wiring Harnesses
      Wiring Harnesses, Kits
   Power Train Repair
      Transmission
      Mechanical Front Wheel Drive
      Axles and Driveshaft
   Steering and Brake Repair
      Steering
      Brakes
   Miscellaneous Repair
      Wheels
      Hood, Cargo Box, and Bumper
      Fuel and Air System

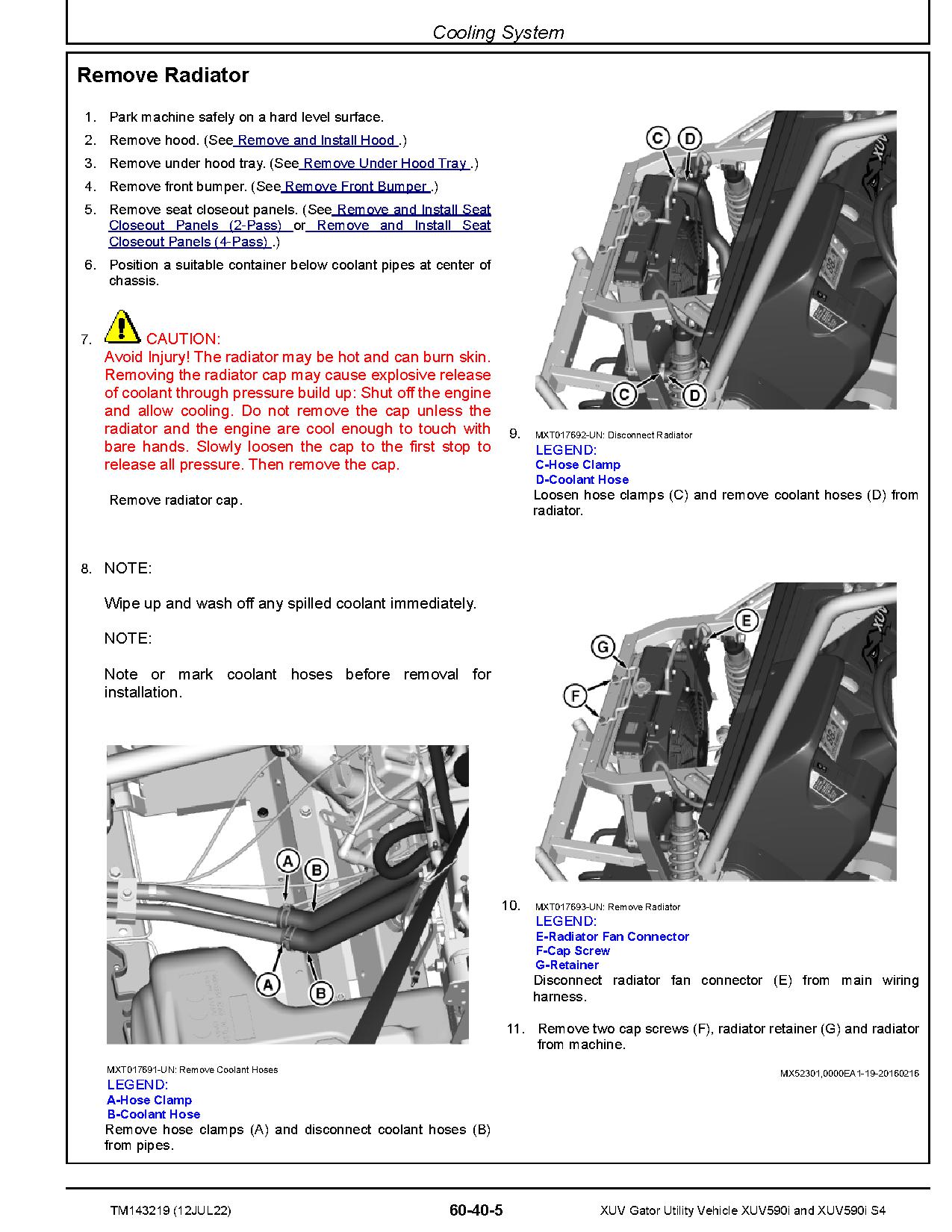

      Cooling System
   Operator`s Station Repair
      Operator`s Station and Seat
      Occupant Protective Structure (OPS)
   Engine Operation, Tests and Adjustments
      Component Location
      Tests and Adjustments
      Diagnosis
   Electrical Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Schematics
      Schematics, Kits
      Tests and Adjustments
      Diagnostic Trouble Codes, SCU
      Diagnostic Trouble Codes, ECU
      Service ADVISOR Readings

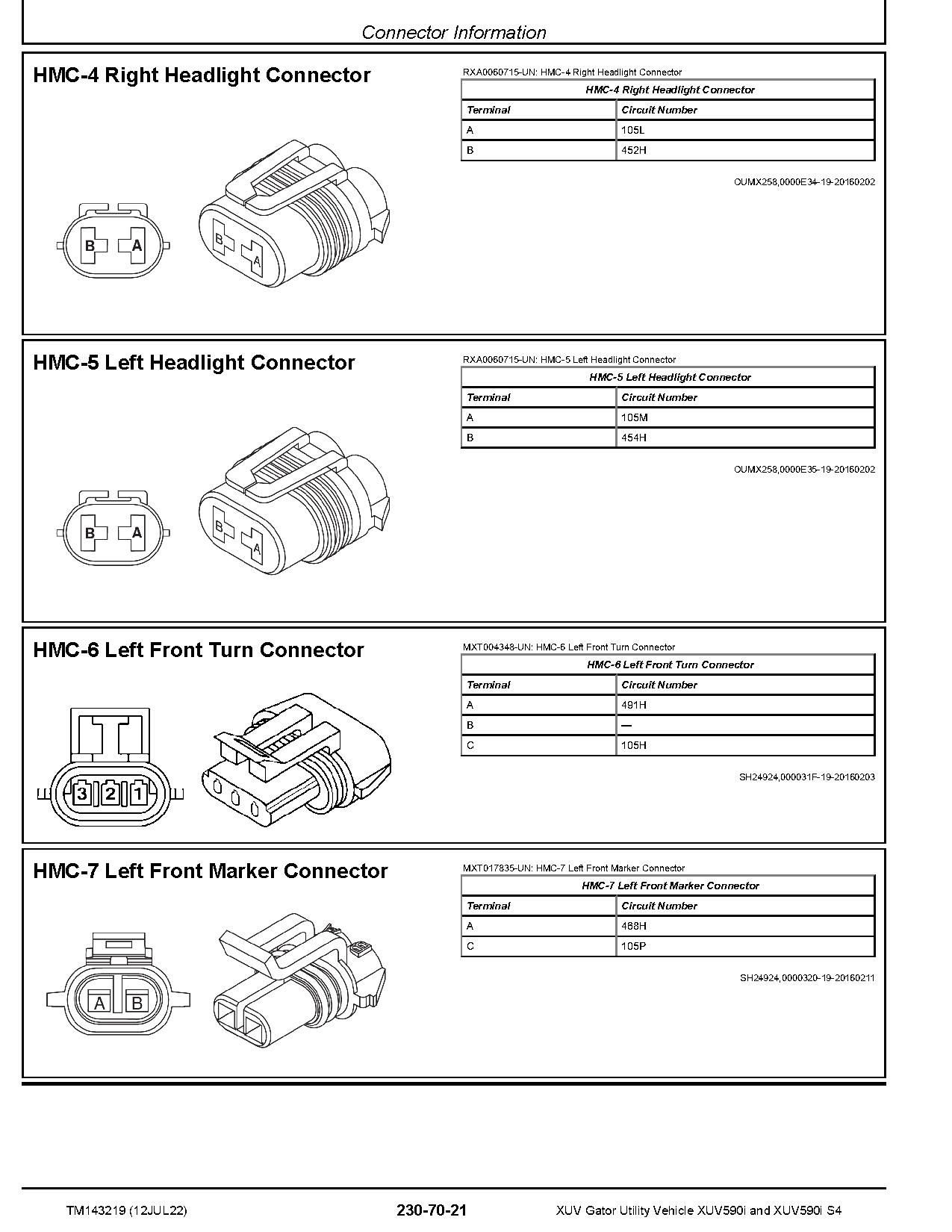

      Connector Information
   Power Train Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Steering and Brake Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Service Tools
      Service Tools and Kits
