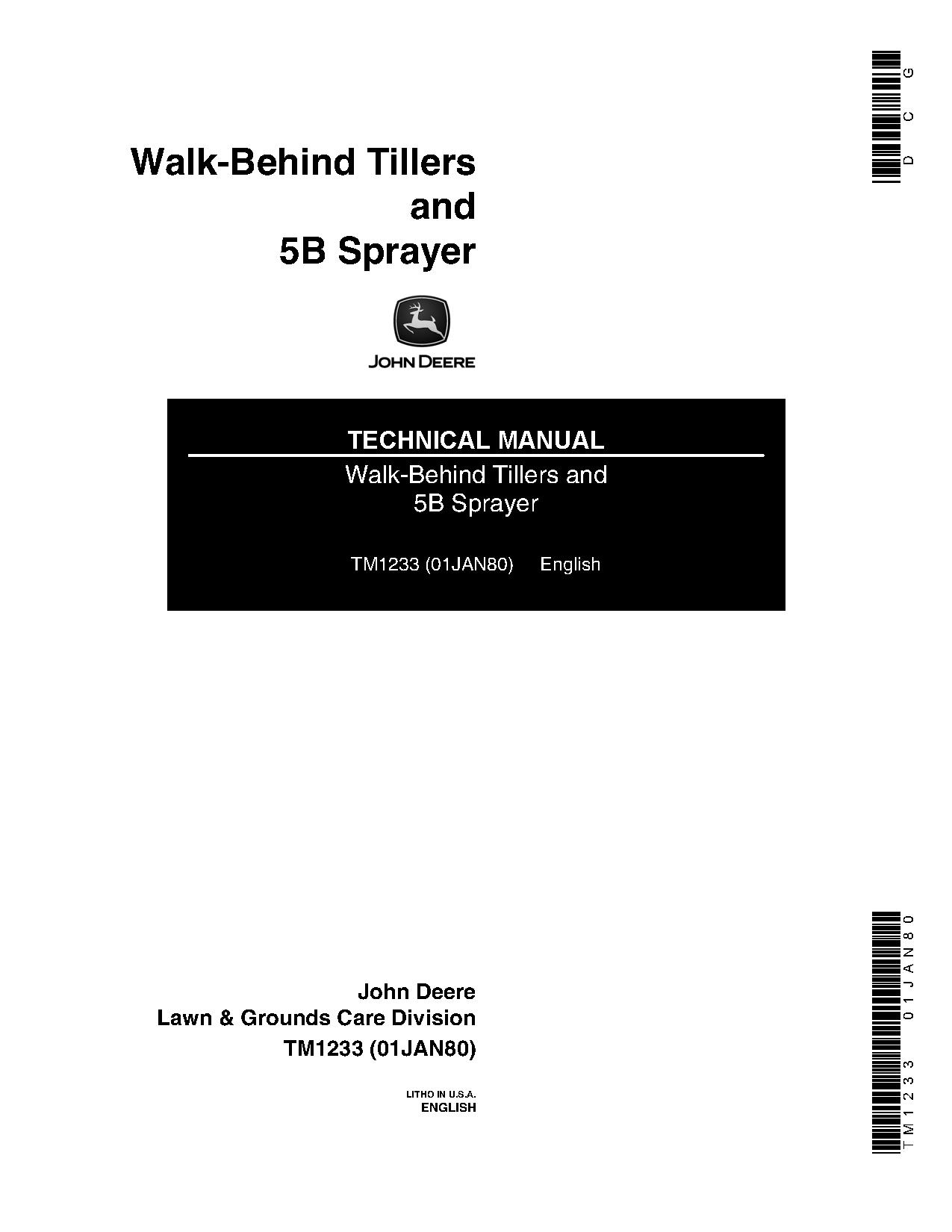

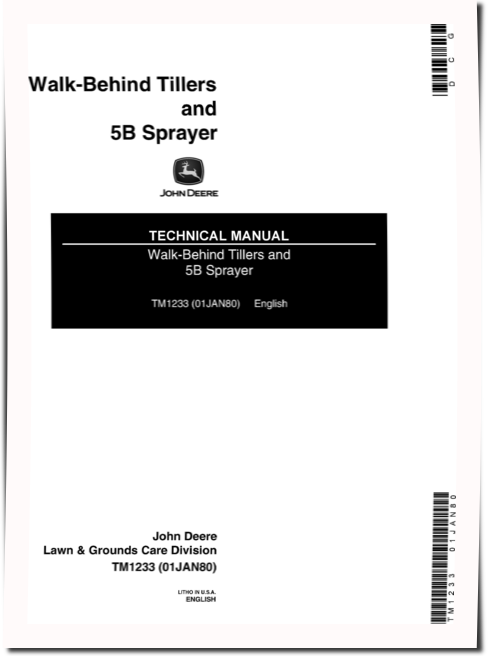

John Deere 216, 324, 524, 624 Walk-Behind Tillers and 5B Sprayers Technical Manual (TM1233)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 216, 324, 524, 624 Walk-Behind Tillers and 5B Sprayers Technical Manual (TM1233)

Number: 20342
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Sprayer, Walk-Behind Tiller
  • Model
    5B, 216, 324, 524, 624
Details
Table of Contents:
   GENERAL
      Machine Identification
      Specifications
      Fuel and Lubricants
   TECUMSEH ENGINES
      General Information

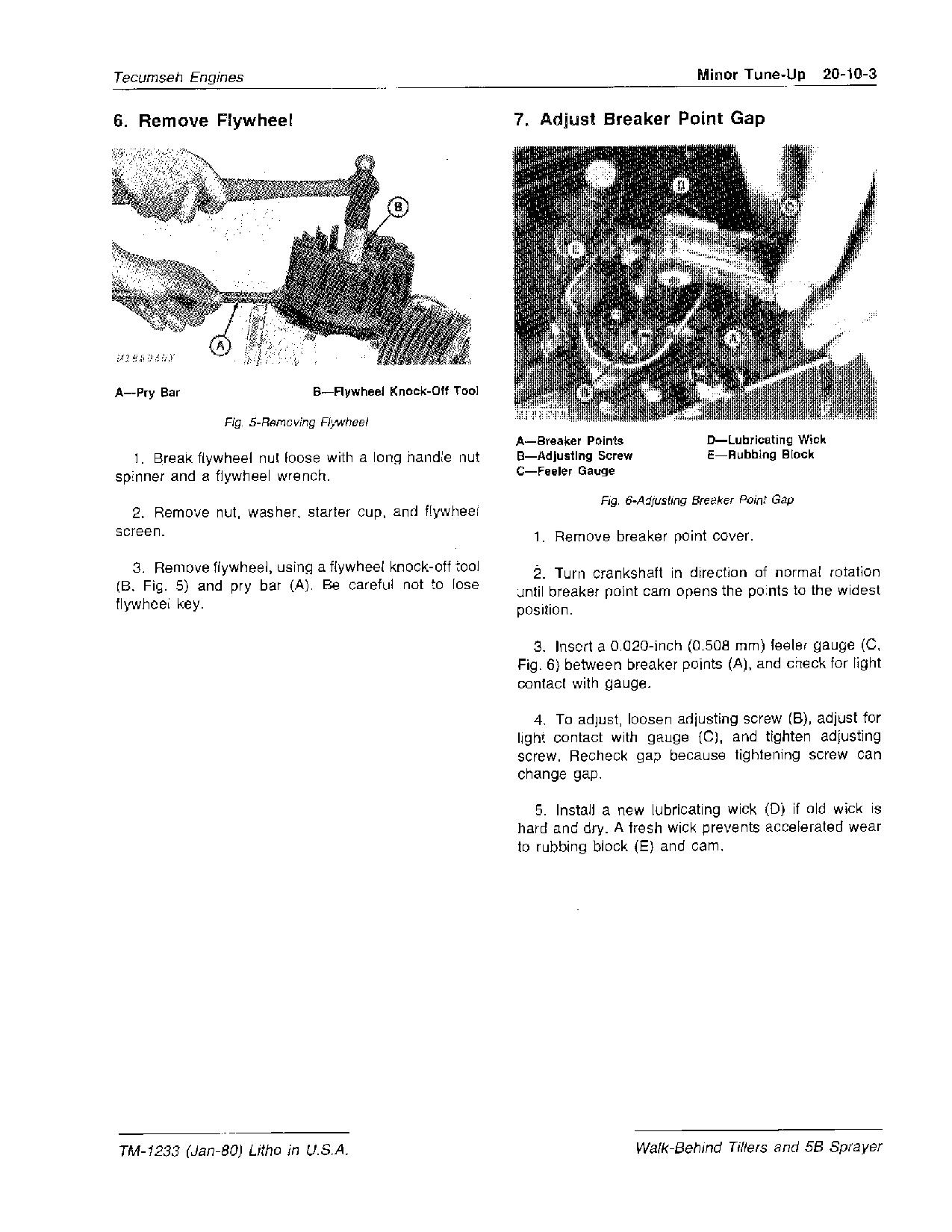

      Minor Tune-Up
      Cylinder Head, Valves, and Breather

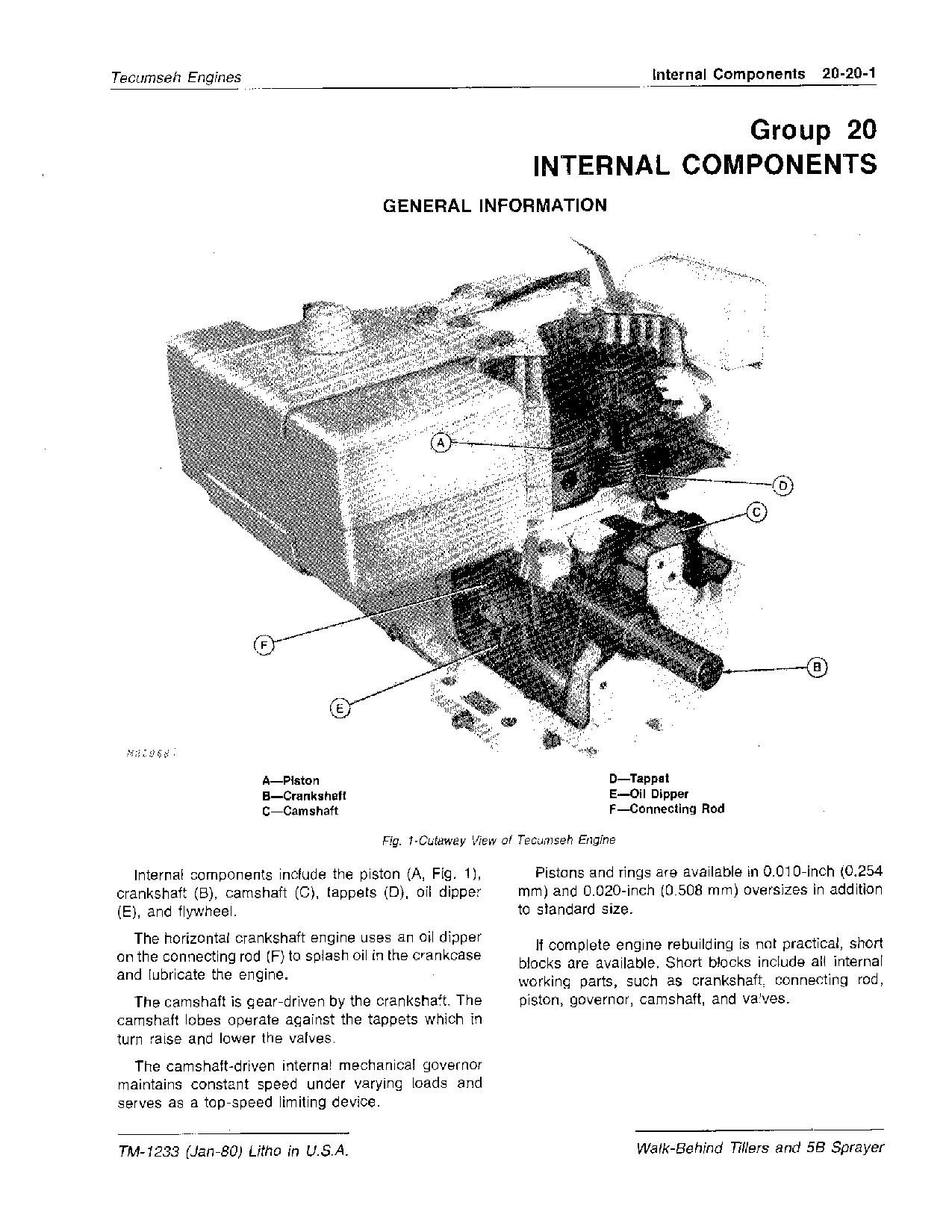

      Internal Components
      Recoil Starter
      Specifications
   BRIGGS & STRATTON ENGINES
      General Information
      Minor Tune-Up
      Cylinder Head, Valves, and Breather
      Internal Components
      Recoil Starter
      Specifications
   TECUMSEH FUEL SYSTEM
      General Information
      Adjustable Float-Type Carburetor
      Air Cleaner
   BRIGGS & STRATTON FUEL SYSTEM
      General Information
      Vacu-Jet Carburetor with Manual Choke

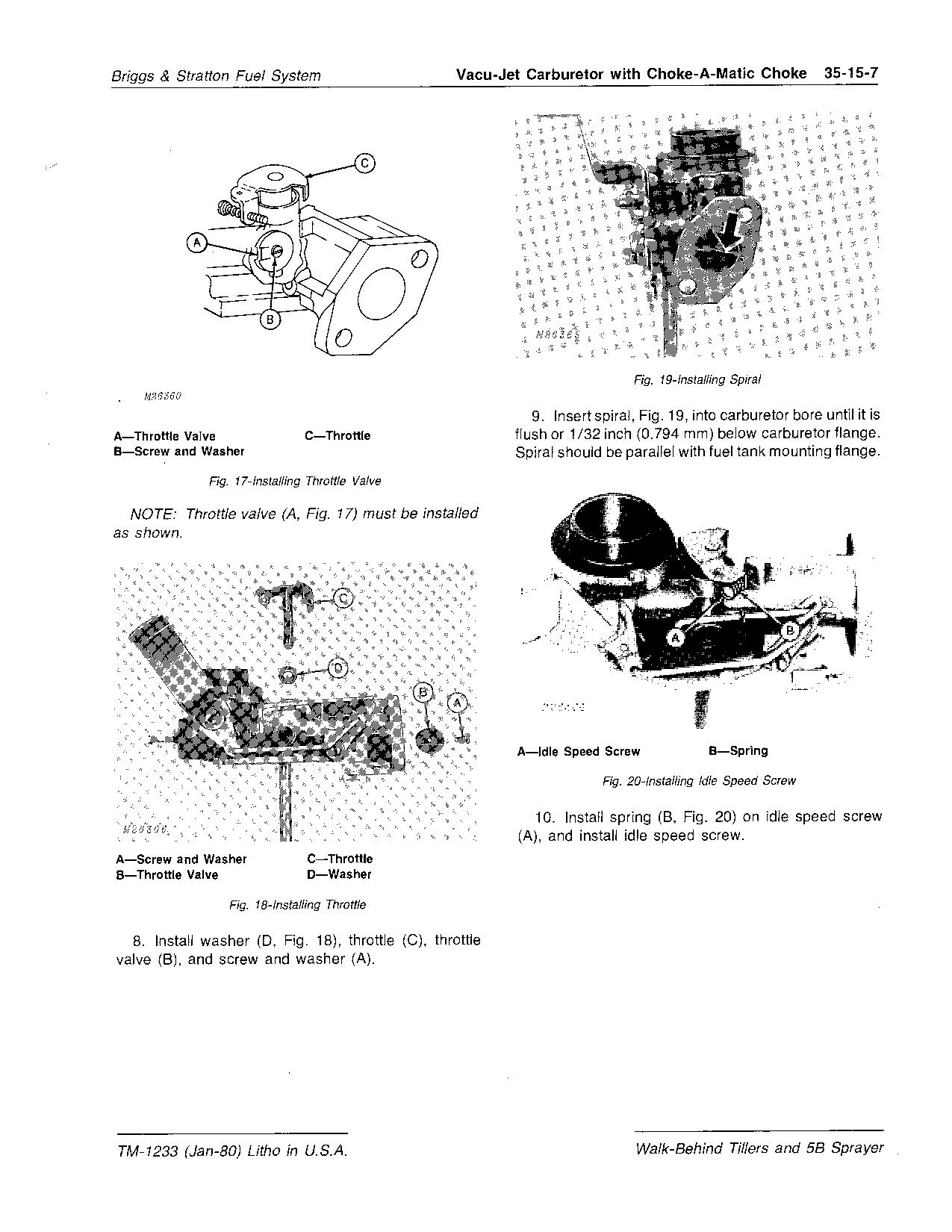

      Vacu-Jet Carburetor with Choke-A Matic Choke
      Governor and Carburetor Linkage
      Air Cleaner
   TECUMSEH ELECTRICAL SYSTEM
      Magneto Ignition System
   BRIGGS & STRATTON ELECTRICAL SYSTEM
      Magneto Ignition System
   POWER TRAIN
      324, 524, and 624 Walk- Behind Tiller Power Train
      216 Walk-Behind Tiller Power Train
      V- Belt Care and Maintenance
   MISCELLANEOUS
      5, 5A, and 5B Sprayer Pumps
      5, 5A, and 5B Sprayer Spraying Systems
   SPECIAL SERVICE TOOLS
      Tecumseh Essential Service Tools
      Briggs & Stratton Essential Service Tools
      Convenience Service Tools
