John Deere 5075M (FT4/S3B), 5085M, 5100M, 5100MH, 5100ML, 5115M and 5115ML (iT3/S3B) Tractors Diagnostic Manual (TM116519)

Number: 20735
Available
Add to Wishlist
Specifications
  • Type Of Document
    Diagnostic Manual
  • Emission Standards
    Interim Tier 4, Final Tier 4, Stage IIIB
  • Type of equipment
    Tractor
  • Model
    5075M, 5085M, 5100M, 5100MH, 5100ML, 5115M, 5115ML
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      Technical Specific References
      Understanding Tractor Serial Numbers
   Diagnostic Trouble Codes
      BCU Code Diagnostics
      CCU Code Diagnostics
      ECU Code Diagnostics
      EIC Code Diagnostics
      HCU Code Diagnostics
      ICC Code Diagnostics
      PTR Code Diagnostics
   Observable Symptoms and System Diagnostics
      General References
      Engine Diagnostics
      Fuel, Air Intake, Exhaust, and Cooling Diagnostics
      Electrical Diagnostics
      Electronic Control Unit Diagnostics
      Drive Systems and Transmission Diagnostics
      Steering and Brakes Diagnostics
      Hydraulic Diagnostics
      Cab/Open Operator`s Station Diagnostics
   Engine
      General References
      Engine Calibrations, Preliminary Checks and Operational Checks
      Engine Theory of Operation
      Engine Schematics
      Engine Component and Connector Information
      Engine Tests and Adjustments
   Fuel, Air Intake, Exhaust, and Cooling
      General References
      Fuel, Air Intake, Exhaust, and Cooling Calibrations, Preliminary and Operational Checks
      Fuel, Air Intake, Exhaust, and Cooling Theory of Operation
      Fuel, Air Intake, Exhaust, and Cooling Schematics
      Fuel, Air Intake, Exhaust, and Cooling Component and Connector Information
      Fuel, Air Intake, Exhaust, and Cooling Tests and Adjustments
   Electrical General and Theory of Operation
      General References
      Turn Signal Switch and Warning Lights
      Wipers (Two Speed)
      Wipers (Single Speed)
      Rear Wipers
      Instrument Cluster Control (ICC)
      Basic Control Unit (BCU)
      Electrohydraulic Control Unit (EHC)
      Hitch Control Unit (HCU)
      Power Train Reverser (PTR)
      Chassis Control Unit (CCU) (PR/SR Transmission)
      Chassis Control Unit (CCU) (SS Transmission)
      Engine Control Unit (ECU)
      Controller Area Network
   Electrical Schematics
      General References
      Starting, Charging and Battery Disconnect (SE1)
      Neutral Start (SS Transmission) (SE2A)
      Neutral Start (PR/SR Transmission) (SE2B)
      Accessory Power (SE3)
      Horn (SE4)
      Light Switch, Headlights, and Signal Lights (SE5)
      Cab Work Lighting (SE5A)
      Open Operator Station Work Lighting (SE5B)
      Turn Signal Switch and Warning Lights (SE6)
      Light Switch, Headlights and Signal Lights (License and Clearance Lights) (SE7)
      Cab Work Lighting (License and Clearance Lights) (SE7A)
      Open Operator Station Work Lighting (License and Clearance Lights) (SE7B)
      Warning and Turn Signal Lighting (License and Clearance Lights) (SE8)
      Junction Block Power (SE9)
      Trailer Connector (SE10)
      Trailer Connector (Implement Flood Light Connector) (SE11A)
      Front Implement Interfaces (SE11B)
      Loader Lights (SE12)
      Back-Up Alarm (SE13A)
      Beacon Light (SE13B)
      Mid-Mount SCV (SE14)
      Power Outlets (Square Terminals) (SE15A)
      Power Outlets (Round Terminals) (SE15B)
      Heating (SE16)
      Air Conditioning (SE17)
      Wipers (Two Speed) (SE19)
      Wipers (Single Speed) (SE20)
      Rear Wipers (SE21)
      Dome Light, Door Switch, and Radio (SE22)
      Air Seat (SE23)
      Instrument Cluster Control (ICC) (SE24)
      Ground Drive PTO, Seat, Rear PTO and Wheel Speed (SE25A)
      Front PTO (SE25B)
      Multi-Function Control Lever (SE25C)
      ELX Relay and Fuses (SE26)
      Mechanical Front-Wheel Drive (MFWD) (SE27)
      Brake Switch (SE28)
      Electrohydraulic Control Unit (EHC) (SE29A)
      Hitch Control Unit (HCU) (SE29B)
      Power Train Reverser (PTR) (SE29C)
      Chassis Control Unit (CCU) (PR/SR Transmission) (SE29D)
      Chassis Control Unit (CCU) (SS Transmission) (SE29E)
      Engine Control Unit (ECU) (SE30)
      Fuel Preheater (License and Clearance Lights) (SE31)
      Controller Area Network (SE32)
   Electrical Components and Connectors
      General References
      Starting and Charging (SE1)
      Neutral Start (SS Transmission) (SE2A)
      Neutral Start (PR/SR Transmission) (SE2B)
      Accessory Power (SE3)
      Horn (SE4)
      Light Switch, Headlights, and Signal Lights (SE5)
      Cab Work Lighting (SE5A)
      Open Operator Station Work Lighting (SE5B)
      Turn Signal Switch and Warning Lights (SE6)
      Light Switch, Headlights and Signal Lights (License and Clearance Lights) (SE7)
      Cab Work Lighting (License and Clearance Lights) (SE7A)
      Open Operator Station Work Lighting (License and Clearance Lights) (SE7B)
      Warning Light Switch and Turn Signal Lighting (License and Clearance Lights) (SE8)
      Junction Block Power (SE9)
      Trailer Connector (SE10)
      Trailer Connector (Implement Flood Light Connector) (SE11A)
      Front Implement (SE11B)
      Loader Lights (SE12)
      Back-Up Alarm (SE13A)
      Beacon Light (SE13B)
      Mid-Mount SCV (SE14)
      Power Outlets (Square Terminals) (SE15A)
      Power Outlets (Round Terminals) (SE15B)
      Heating (SE16)
      Air Conditioning (SE17)
      Wipers (Two Speed) (SE19)
      Wipers (Single Speed) (SE20)
      Rear Wipers (SE21)
      Dome Light, Door Switch and Radio (SE22)
      Air Seat (SE23)
      Instrument Cluster Control (ICC) (SE24)
      Ground Drive PTO, Seat, Rear PTO, and Wheel Speed (SE25A)
      Front PTO (SE25B)
      Multi-Function Control Lever (SE25C)
      ELX Relay and Fuses (SE26)
      Mechanical Front-Wheel Drive (MFWD) (SE27)
      Brake Switch (SE28)
      Electrohydraulic Control Unit (EHC) (SE29A)
      Hitch Control Unit (HCU) (SE29B)
      Power Train Reverser (PTR) (SE29C)
      Chassis Control Unit (CCU) (PR/SR Transmission) (SE29D)
      Chassis Control Unit (CCU) (SS Transmission) (SE29E)
      Engine Control Unit (ECU) (SE30)
      Fuel Preheater (License and Clearance Lights) (SE31)
      Controller Area Network (SE32)
      Fuses and Relays
      Ground Points
      Interconnects

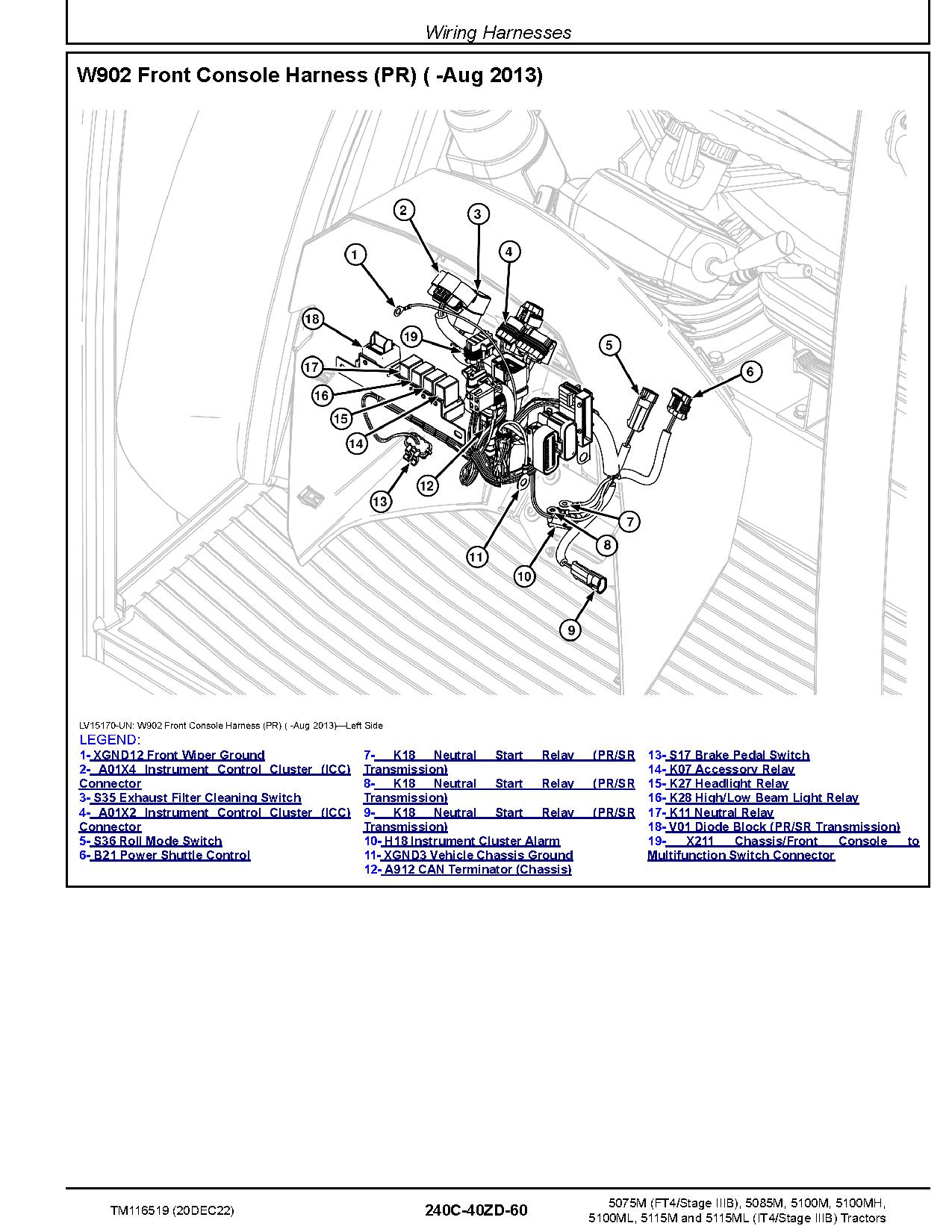

      Wiring Harnesses
   Electrical Tests and Adjustments
      General References
      Starting and Charging
      Neutral Start (SS Transmission)
      Neutral Start (PR/SR Transmission)
      Accessory Power
      Horn
      Light Switch, Headlights, and Signal Lights
      Cab Work Lighting
      Open Operator Station Work Lighting
      Turn Signal Switch and Warning Lights
      Light Switch, Headlights and Signal Lights (License and Clearance Lights)
      Cab Work Lighting (License and Clearance Lights)
      Open Operator Station Work Lighting (License and Clearance Lights)
      Warning and Turn Signal Lighting (License and Clearance Lights)
      Junction Block Power
      Trailer Connector
      Trailer Connector (Implement Flood Light Connector)
      Front Implement Interfaces
      Loader Lights
      Back-Up Alarm
      Beacon Light
      Mid-Mount SCV
      Power Outlets (Square Terminals)
      Power Outlets (Round Terminals)
      Heating
      Air Conditioning
      Wipers (Two Speed)
      Wipers (Single Speed)
      Rear Wipers
      Dome Light, Door Switch and Radio
      Air Seat
      Instrument Cluster Control (ICC)
      Ground Drive PTO, Seat, Rear PTO, and Wheel Speed
      Front PTO
      Multi-Function Control Lever
      ELX Relay and Fuses
      Mechanical Front-Wheel Drive (MFWD)
      Brake Switch
      Electrohydraulic Control Unit (EHC)
      Hitch Control Unit (HCU)
      Power Train Reverser (PTR)
      Chassis Control Unit (CCU) (PR/SR Transmission)
      Chassis Control Unit (CCU) (SS Transmission)
      Engine Control Unit (ECU)
      Fuel Preheater
      Controller Area Network
   Electronic Control Units
      General References
      Calibrations, Preliminary Checks and Operational Checks
      Theory of Operation
      Schematics
      Component and Connector Information
      Tests and Adjustments
      Basic Control Unit (BCU)
      Chassis Control Unit (CCU)
      Engine Control Unit (ECU)
      Engine Interface Control Unit (EIC)
      Hitch Control Unit (HCU)
      Instrument Cluster Control Unit (ICC)
      Power Train Reverser (PTR)
   Drive Systems and Transmissions
      General References
      Calibrations, Preliminary Checks and Operational Checks
      Creeper Theory of Operation
      Differential Theory of Operation
      Differential Lock Theory of Operation
      Final Drive Theory of Operation
      Front PTO Theory of Operation
      Rear PTO Theory of Operation
      High Crop Axle Theory of Operation
      MFWD Theory of Operation
      PR/SR Transmission Theory of Operation
      PR Plus Transmission Theory of Operation
      SS Transmission Theory of Operation
      Drive Systems Schematics
      Transmission Schematics
      Drive Systems Component and Connector Information
      Transmission Component and Connector Information

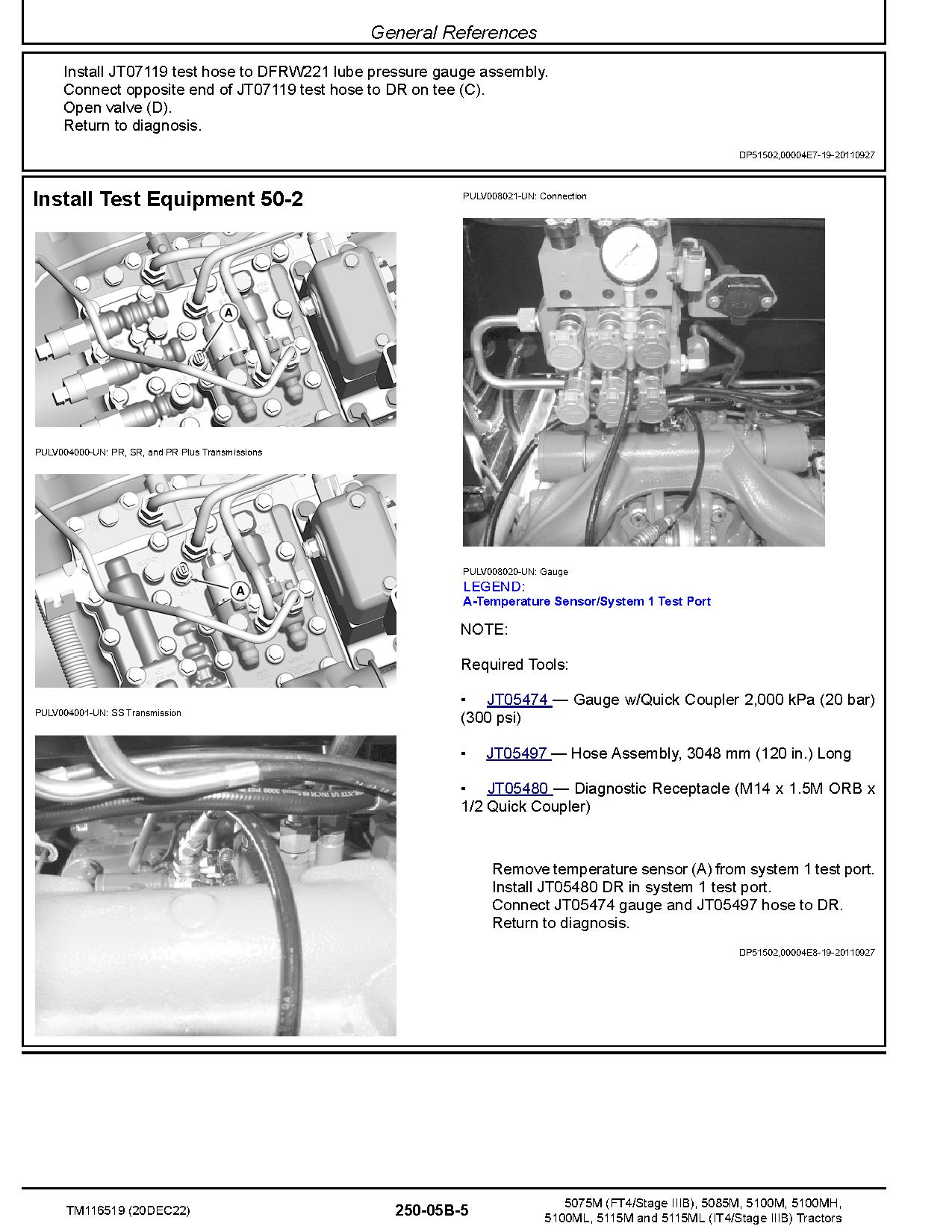

      Drive Systems Tests and Adjustments
      Transmission Tests and Adjustments
   Steering and Brakes
      General References
      Brake Calibrations, Preliminary Checks and Operational Checks
      Steering Calibrations, Preliminary Checks and Operational Checks
      Brake Theory of Operation
      Secondary Brake Theory of Operation
      Steering Theory of Operation
      Brake Schematics
      Steering Schematics
      Brake Component and Connector Information
      Secondary Brake Component and Connector Information
      Steering Component and Connector Information
      Brake Tests and Adjustments
      Secondary Brake Tests and Adjustments
      Steering Tests and Adjustments
   Hydraulics
      General References
      Calibrations, Preliminary Checks and Operational Checks
      General Hydraulics Theory of Operation
      Electrohydraulic Hitch Theory of Operation
      Mechanical Hitch Theory of Operation
      Front Hitch Theory of Operation
      Hydraulic Filter Theory of Operation
      Hydraulic Pump Theory of Operation
      Dual Mid-Mount SCV Theory of Operation-Mono-Block Valve
      Power Beyond Theory of Operation-Mono-Block Valve
      Quick Disconnect Coupler Theory of Operation
      Dual Rear SCV Theory of Operation-Mono-Block Valve
      Triple Mid-Mount SCV Theory of Operation-Mono-Block Valve
      Triple Rear SCV Theory of Operation-Mono-Block Valve
      Dual Mid-Mount SCV Theory of Operation-Sectional Valve
      Power Beyond Theory of Operation-Sectional Valve
      Dual Rear SCV Theory of Operation-Sectional Valve
      Triple Mid-Mount SCV Theory of Operation-Sectional Valve
      Triple Rear SCV Theory of Operation-Sectional Valve
      Hydraulic Trailer Brake Theory of Operation

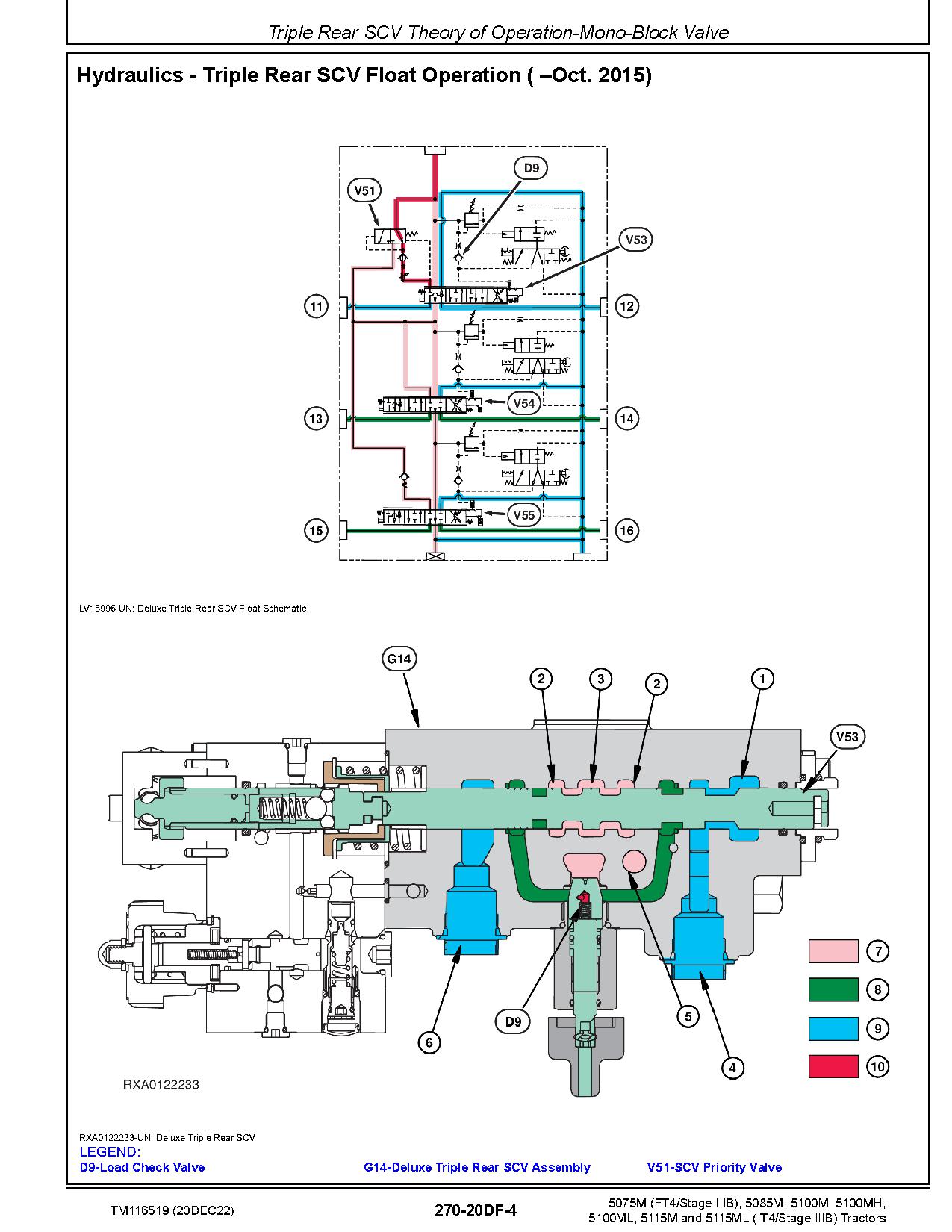

      Schematics-Mono-Block Valve
      Schematics-Sectional Valve
      Component and Connector Information
      Tests and Adjustments
   Cab/Open Operator`s Station
      General References
      Calibrations, Preliminary Checks and Operational Checks
      HVAC Theory of Operation
      Seat Theory of Operation
      Schematics
      Component and Connector Information
      Tests and Adjustments
   Special Tools
      General References
      Dealer Fabricated and Service Tools
      Section 240A
      Section 240B
      Section 240C
      Section 240D
