John Deere 1500 Powr-Till Seeders Technical Manual (TM1152)

Number: 20584
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Powr-Till Seeder
  • Model
    1500
Details
Table of Contents:
   Introduction
   Safety and You
   General Information
      Description
      Lubrication
   DIAGNOSING MALFUNCTIONS AND TESTING
      Organizing the Diagnosis
      Diagnosing
   POWERSHAFT
      General Information
      Removal and Installation
      Disassembly
      Inspection and Repair
      Assembly

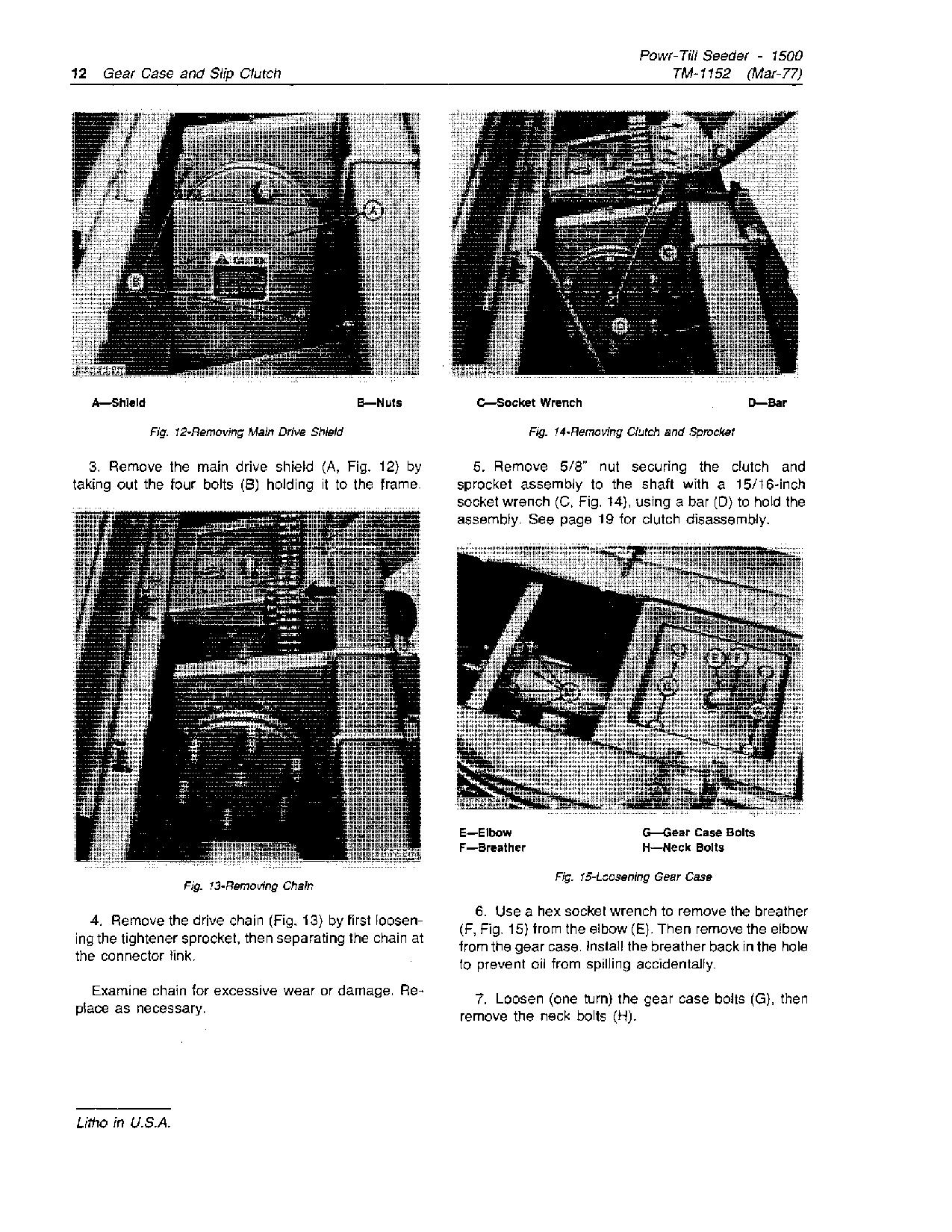

   GEAR CASE AND SLIP CLUTCH
      General Information
      Gear Case
      Slip Clutch
   CUTTER WHEEL UNITS
      General Information
      Removing Line Shaft Assemblies
      Replacing Front Bearing
      Replacing Front Sprocket
      Replacing Rear Shaft Components
      Assembly
   END WHEEL DRIVE.
      General Information
      Axle and Axle Plate Disassembly
      Installation
   GRAIN MODEL DRIVES
      Drive Shaft Replacement
      Inner Bearing Replacement
      Outer Bearing Replacement

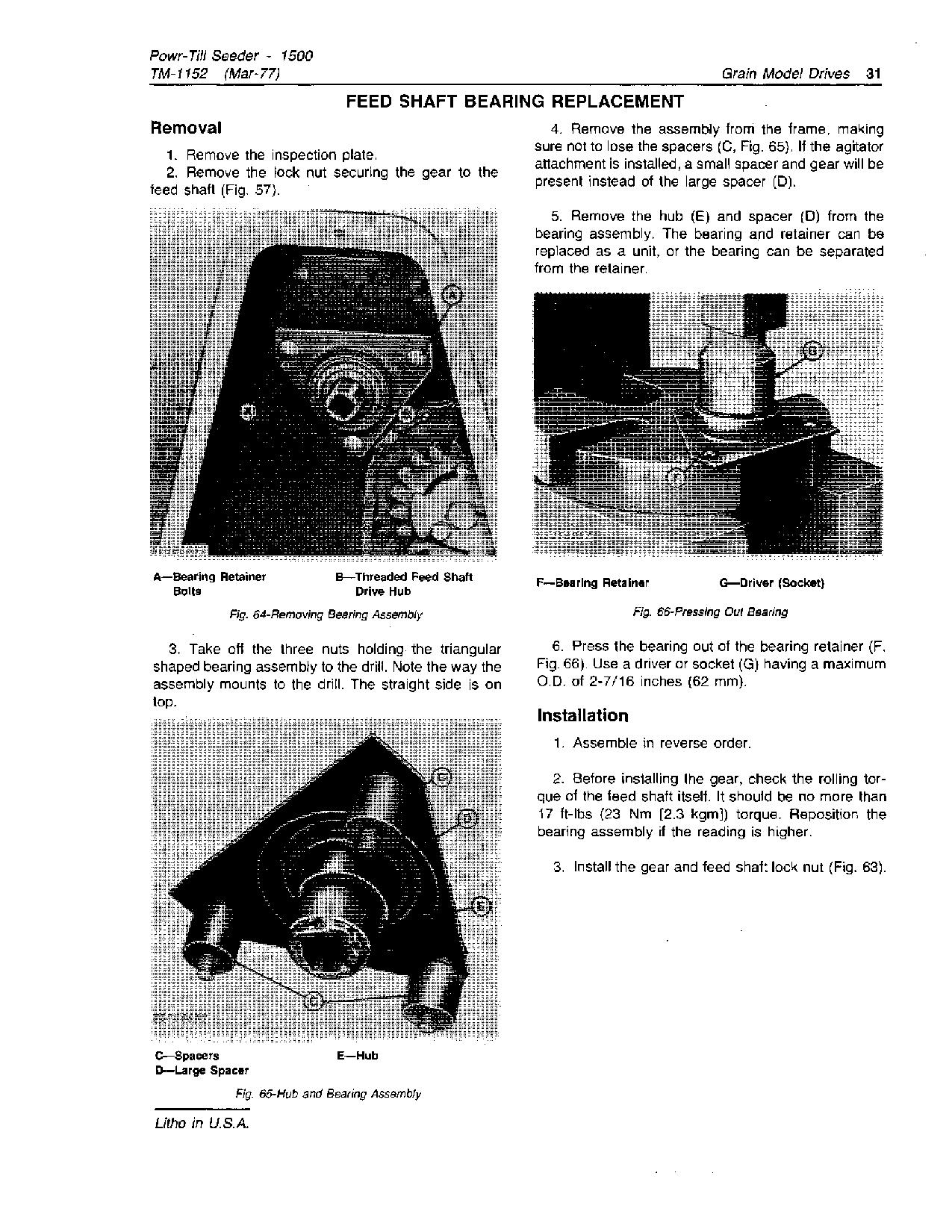

      Feed Shaft Bearing Replacement
      Removing Grain Shifter
      Grain Cups
   GRASS BOX DRIVES . .
      Inner Bearing Replacement
      Drive Shaft Replacement
      Outer Bearing Replacement
      Grass Cups
   SPECIFICATIONS
