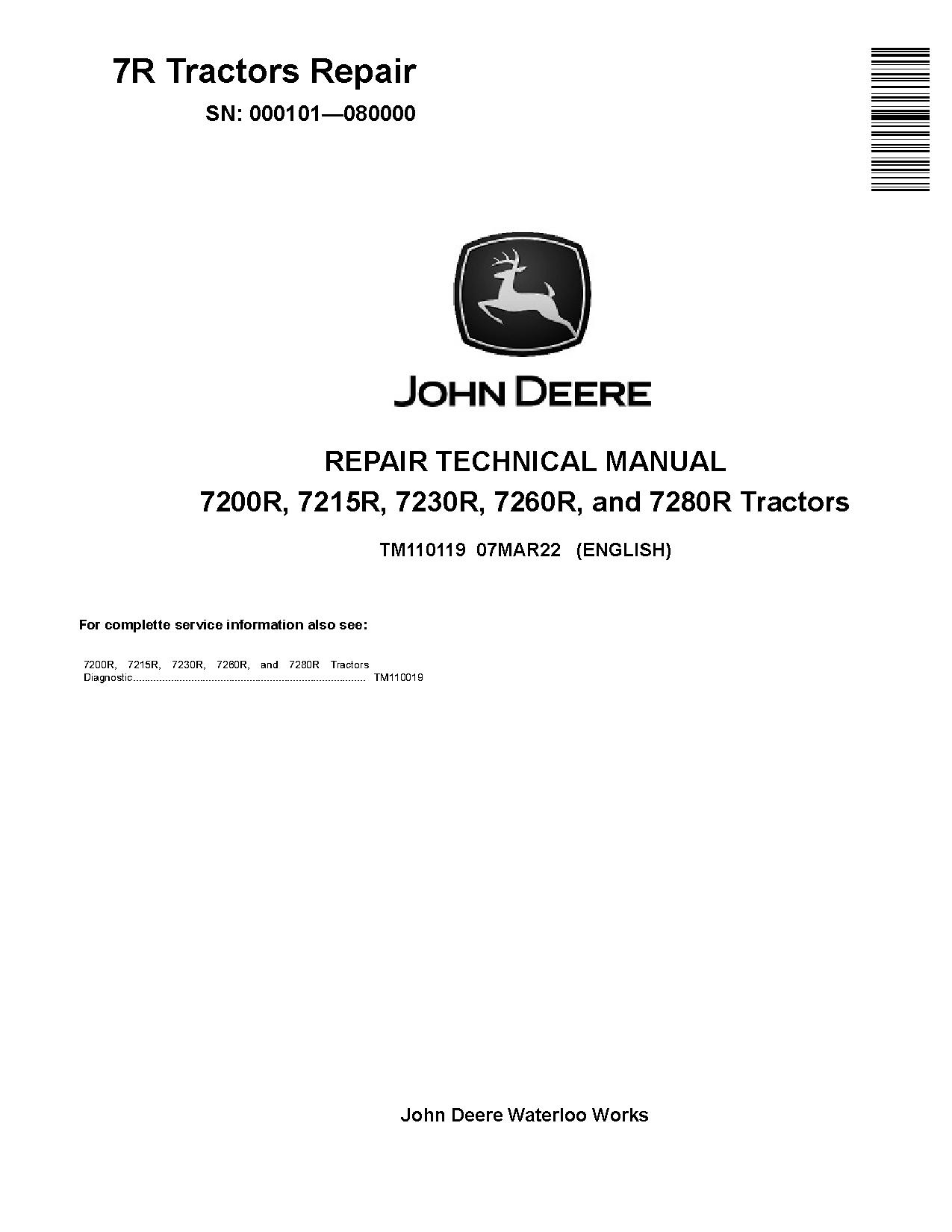

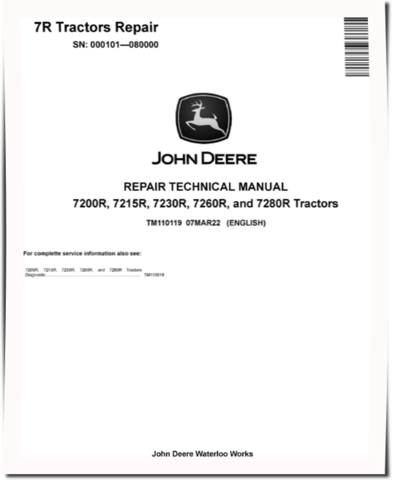

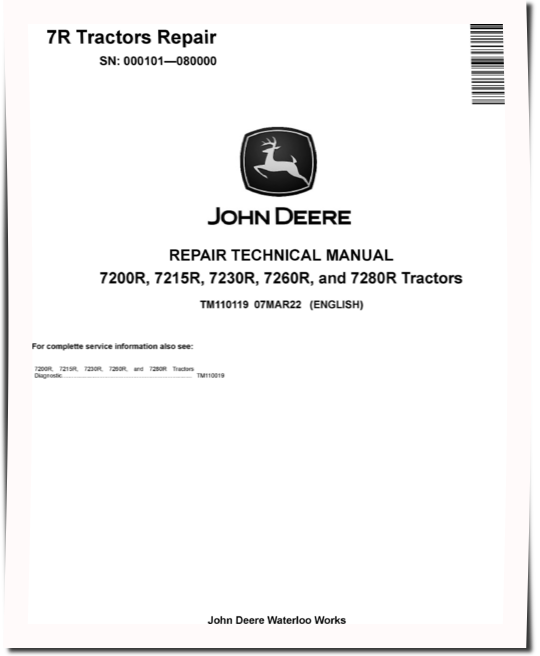

John Deere 7200R, 7215R, 7230R, 7260R and 7280R Tractors (SN: 000101-080000) Repair Manual (TM110119)

Table of Contents:
   Introduction
      Foreword
      Dealer Predelivery Information Form
   General Information
      Safety
      General Information
   Engine

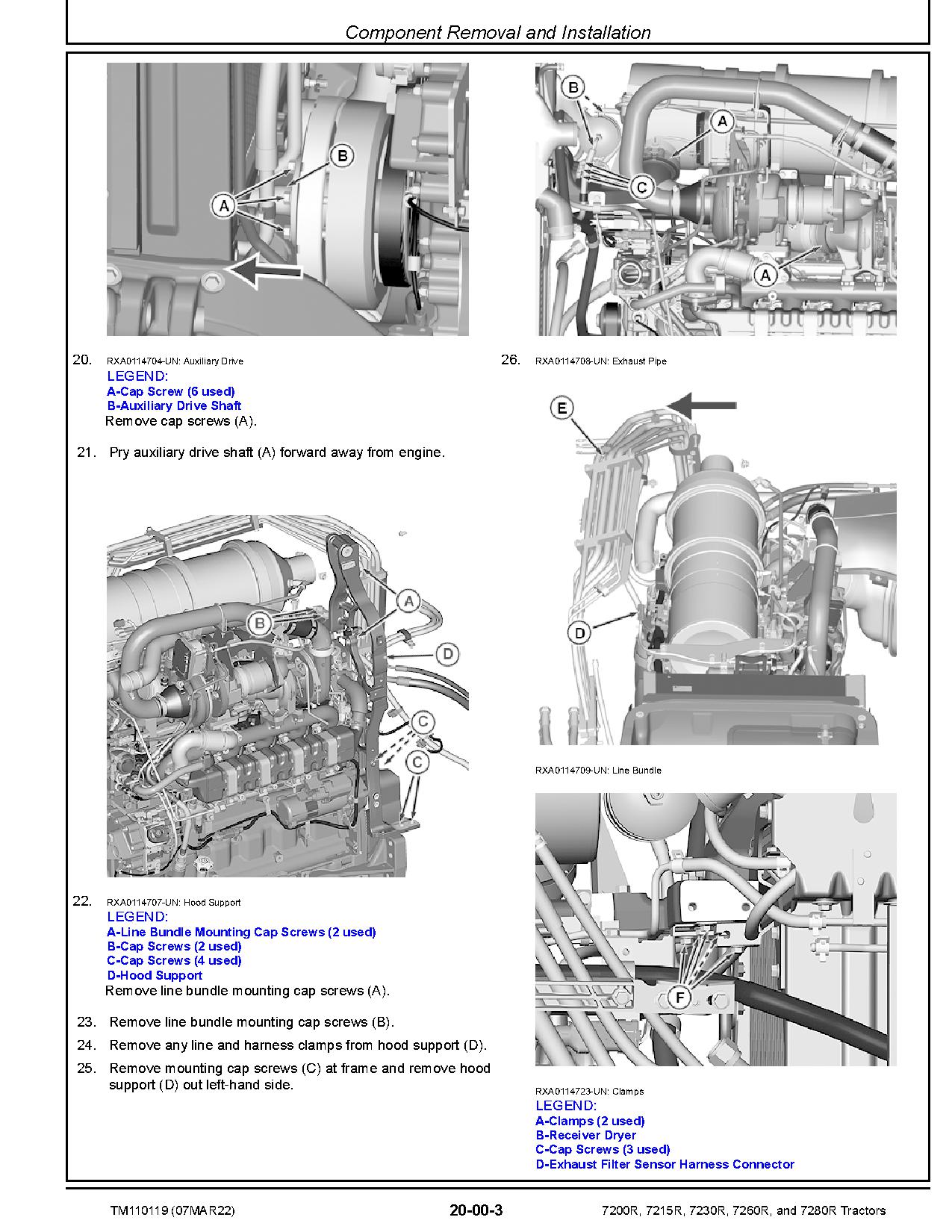

      Component Removal and Installation
      Engine Repair
   Fuel and Cooling Systems
      Diesel Fuel System
      Air Intake System
      Auxiliary Drive System
      Radiator and Coolers
      Exhaust System
   Electrical
      Connectors
      Wiring Harness Routings
      Charging Circuit
      Starting Circuit
      Relays, Fuses, Solenoids, and Switches
      Monitoring System
      Armrest Control
      Implement and Accessory Connectors
      Convenience and Accessory Components
   AutoQuad/CommandQuad Transmission
      Component Removal and Installation
      Transmission Shifting Mechanisms
      PowrQuad-Plus Module
      Range Box (PowrQuad and AutoQuad)
      Range Box (CommandQuad)
   AutoPowr/IVT Transmission
      Component Removal and Installation
      General Repair Procedures

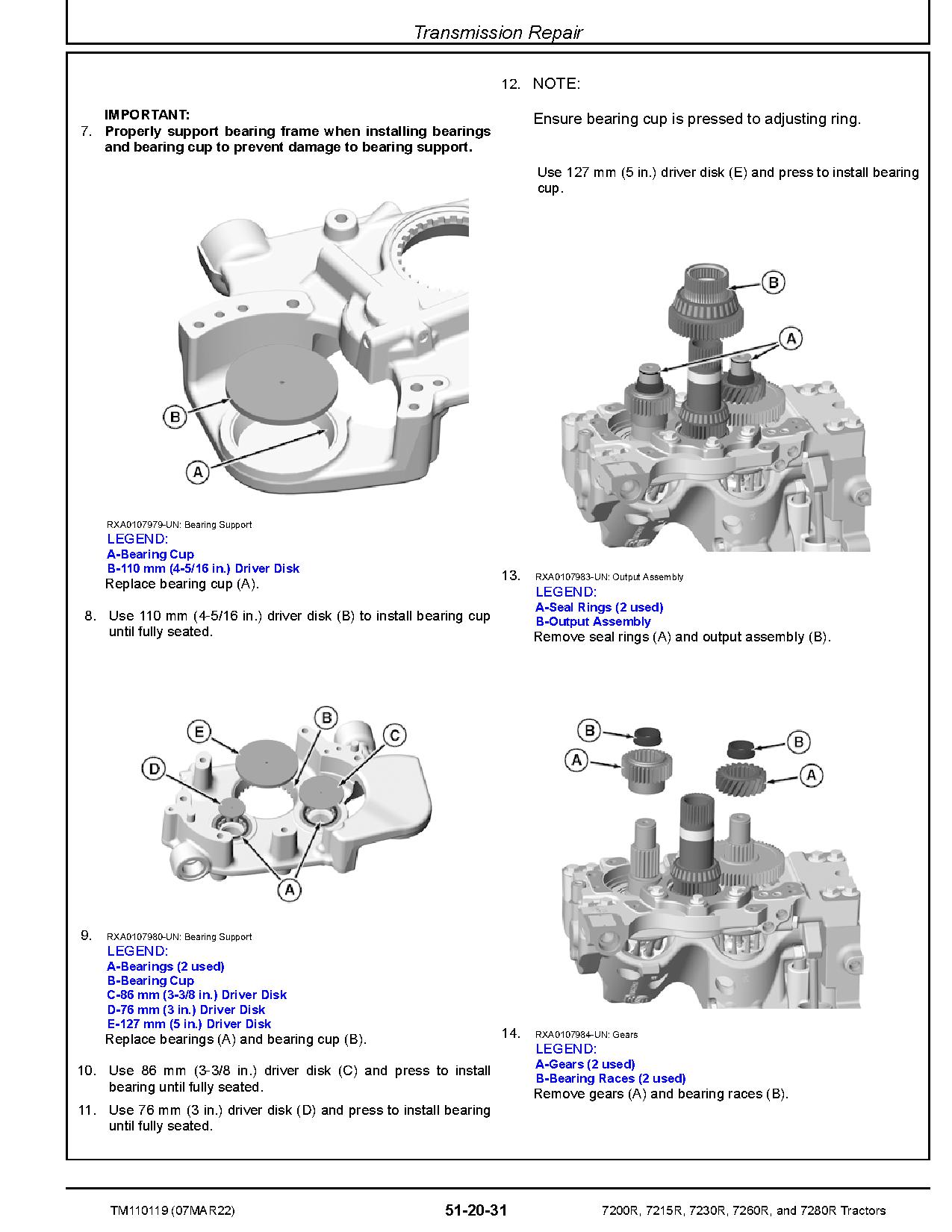

      Transmission Repair
      Assemble Transmission
   Drive Systems
      Component Removal and Installation
      Rear Differential
      Final Drive
      Rear PTO
      Front PTO
      Primary Brakes
      Pump Drive Housing
   1100 Series MFWD Axle
      Component Removal And Installation
      Final Drives
      Axle Housing
      Differential
   1300 Series MFWD Axle
      Component Removal And Installation
      Final Drives
      Axle Housing
      Differential
   Suspended MFWD Axle
      Component Removal And Installation

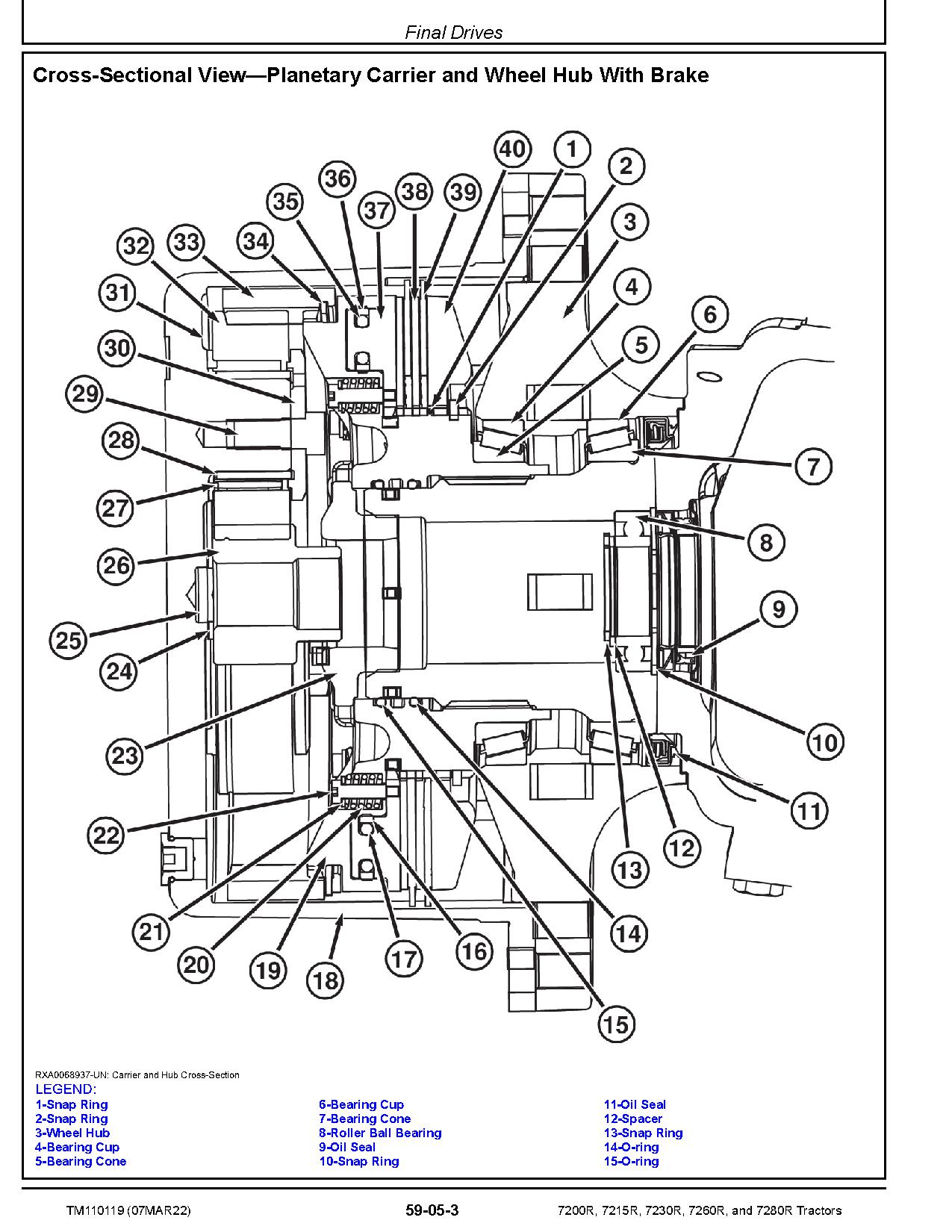

      Final Drives
      Axle Housing
      Differential
      Suspension Components
   Steering and Brakes
      Steering Column
      Steering Control Assembly
      Steering Cylinders
      Service Brakes
      Hydraulic Trailer Brake
      Air Trailer Brake
   Hydraulics
      Component Removal and Installation
      General Repair Procedures
      Integrated Hydraulic Pump
      Hitch Valve, Selective Control Valves and Couplers
      Rear Hitch
      Front Hitch
   Miscellaneous
      Hood
      Front Axle (Two-Wheel Drive)
      Rear Wheels
      Wagon And Pick-Up Hitch
   Operator Station
      Component Removal and Installation
      Heating, Ventilating, and Air Conditioning (HVAC)
      Air Conditioning System
      Air Suspension Seat
      ComfortCommand Seat
      ActiveSeat
      Armrest
      Cab Door and Windshield
      Cab Suspension
   Dealer Tools
      Dealer Fabricated Tools
      Essential And Recommended Tools
